Řešení 2v1

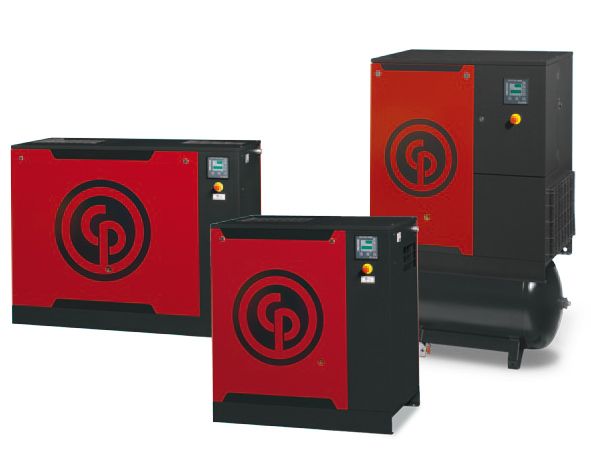

Chicago Pneumatick představil CPA-CPB sérii více než před deseti lety. Během tohoto období ale bylo potřeba provést několik inovací, aby kompresory neustále odpovídaly novým potřebám zákazníků: kombinace 2v1 spojuje výkonný a tichý kompresor včetně sušiče tlakového vzduchu. Uživatelsky přívětivé řešení, které je vhodné pro náročné a těžké pracovní podmínky.
Řada CPA-CPB může být nakonfigurována jako konečné řešení 2v1, které je tvořeno:
- Vzdušník 270 nebo 500L
- Kondenzační sušič
- Automatický odvaděč kondenzátu
- Filtr
Zapomeňte na složité a nákladné zařízení. Jednoduše připojte napájení, připojte potrubí a stiskněte tlačítko START!
Velký odlučovač olej-voda
Navržen tak, aby poskytoval mimořádně nízký obsah zbytkového oleje: pouze 3 ppm půjde do Vaší sítě. Nadměrný odlučovač díky velkým plochám dokáže oddělit olej, nedochází k poklesu tlaku a tím je zajištěna vyšší účinnost.
| Technologie | Šroubový kompresor | |
|---|---|---|
| Použití | Nepřetržitý | |
| Hlučnost | Tichý: 66 - 77 dB(A) | |
| Velikost vzdušníku | 0, 270 or 500 l | |
| Výtlak | 520 - 3893 l/min | |
| Příkon motoru | 7,5 - 40 hp / 5,5 - 30 kW | |
| Tlak | 8 - 13 bar | |
| Hmotnost | 251 - 654 kg | |
| Rozměry se vzdušníkem (v mm) | 0 L: 1095-1659 x 642-805 x 1220 270 L: 1150 x 642 x 1837 500 L: 1935-1939 x 642-805 x 1839-1841 |
 |
 |
 |
 |
 |
| Nízká úroveň hlučnosti | Snadná a rychlá údržba | ES3000 | Vyrobeny pro odolnost | Malé rozměry |
| Izolační pěna, deflektory a antivibrační podložky zajišťují nízkou úroveň hlučnosti. | Řemeny, vzduchový a olejový filtr dobře umístěny. | Unikátní řídící jednotka, speciálně naprogramována pro úsporu energie. | Navrženy pro trvalý provoz a velmi těžké pracovní podmínky. | Zaujímají pouze 1,5 m2. |
| Typ | Litry | l/m | cfm | HP | kW | bar | dB(A) | kg | L x W x H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| Base Mounted 820 | 0 | 820 | 29 | 7,5 | 5,5 | 8 | 66 | 241 | 1095 x 642 x 1220 |
| Base Mounted 1153 | 0 | 1153 | 41 | 10 | 7,5 | 8 | 66 | 246 | 1095 x 642 x 1220 |
| Base Mounted 1665 | 0 | 1665 | 59 | 15 | 11 | 8 | 69 | 266 | 1095 x 642 x 1220 |
| Base Mounted 1985 | 0 | 1985 | 70 | 20 | 15 | 8 | 69 | 291 | 1095 x 642 x 1220 |
| Base Mounted 670 | 0 | 670 | 24 | 7,5 | 5,5 | 10 | 66 | 241 | 1095 x 642 x 1220 |
| Base Mounted 1000 | 0 | 1000 | 35 | 10 | 7,5 | 10 | 66 | 246 | 1095 x 642 x 1220 |
| Base Mounted 1435 | 0 | 1435 | 51 | 15 | 11 | 10 | 69 | 266 | 1095 x 642 x 1220 |
| Base Mounted 1771 | 0 | 1771 | 63 | 20 | 15 | 10 | 69 | 291 | 1095 x 642 x 1220 |
| Base Mounted 520 | 0 | 520 | 18 | 7,5 | 5,5 | 13 | 66 | 241 | 1095 x 642 x 1220 |
| Base Mounted 810 | 0 | 810 | 29 | 10 | 7,5 | 13 | 66 | 246 | 1095 x 642 x 1220 |
| Base Mounted 1210 | 0 | 1210 | 43 | 15 | 11 | 13 | 69 | 266 | 1095 x 642 x 1220 |
| Base Mounted 1480 | 0 | 1480 | 52 | 20 | 15 | 13 | 69 | 291 | 1095 x 642 x 1220 |
| Base Mounted + Dryer 820 | 0 | 820 | 29 | 7,5 | 5,5 | 8 | 66 | 271 | 1095 x 642 x 1220 |
| Base Mounted + Dryer 1153 | 0 | 1153 | 41 | 10 | 7,5 | 8 | 66 | 276 | 1095 x 642 x 1220 |
| Base Mounted + Dryer 1665 | 0 | 1665 | 59 | 15 | 11 | 8 | 69 | 296 | 1095 x 642 x 1220 |
| Base Mounted + Dryer 1985 | 0 | 1985 | 70 | 20 | 15 | 8 | 69 | 321 | 1095 x 642 x 1220 |
| Base Mounted + Dryer 670 | 0 | 670 | 24 | 7,5 | 5,5 | 10 | 66 | 271 | 1095 x 642 x 1220 |
| Base Mounted + Dryer 1000 | 0 | 1000 | 35 | 10 | 7,5 | 10 | 66 | 276 | 1095 x 642 x 1220 |
| Base Mounted + Dryer 1435 | 0 | 1435 | 51 | 15 | 11 | 10 | 69 | 296 | 1095 x 642 x 1220 |
| Base Mounted + Dryer 1771 | 0 | 1771 | 63 | 20 | 15 | 10 | 69 | 321 | 1095 x 642 x 1220 |
| Base Mounted + Dryer 520 | 0 | 520 | 18 | 7,5 | 5,5 | 13 | 66 | 271 | 1095 x 642 x 1220 |
| Base Mounted + Dryer 810 | 0 | 810 | 29 | 10 | 7,5 | 13 | 66 | 276 | 1095 x 642 x 1220 |
| Base Mounted + Dryer 1210 | 0 | 1210 | 43 | 15 | 11 | 13 | 69 | 296 | 1095 x 642 x 1220 |
| Base Mounted + Dryer 1480 | 0 | 1480 | 52 | 20 | 15 | 13 | 69 | 321 | 1095 x 642 x 1220 |
| 270L Tank Mounted + Dryer 820 | 270 | 820 | 29 | 7,5 | 5,5 | 8 | 66 | 336 | 1150 x 642 x 1837 |
| 270L Tank Mounted + Dryer 1153 | 270 | 1153 | 41 | 10 | 7,5 | 8 | 66 | 341 | 1150 x 642 x 1837 |
| 270L Tank Mounted + Dryer 1665 | 270 | 1665 | 59 | 15 | 11 | 8 | 69 | 361 | 1150 x 642 x 1837 |
| 270L Tank Mounted + Dryer 1985 | 270 | 1985 | 70 | 20 | 15 | 8 | 69 | 386 | 1150 x 642 x 1837 |
| 270L Tank Mounted + Dryer 670 | 270 | 670 | 24 | 7,5 | 5,5 | 10 | 66 | 336 | 1150 x 642 x 1837 |
| 270L Tank Mounted + Dryer 1000 | 270 | 1000 | 35 | 10 | 7,5 | 10 | 66 | 341 | 1150 x 642 x 1837 |
| 270L Tank Mounted + Dryer 1435 | 270 | 1435 | 51 | 15 | 11 | 10 | 69 | 361 | 1150 x 642 x 1837 |
| 270L Tank Mounted + Dryer 1771 | 270 | 1771 | 63 | 20 | 15 | 10 | 69 | 386 | 1150 x 642 x 1837 |
| 270L Tank Mounted + Dryer 520 | 270 | 520 | 18 | 7,5 | 5,5 | 13 | 66 | 336 | 1150 x 642 x 1837 |
| 270L Tank Mounted + Dryer 810 | 270 | 810 | 29 | 10 | 7,5 | 13 | 66 | 341 | 1150 x 642 x 1837 |
| 270L Tank Mounted + Dryer 1210 | 270 | 1210 | 43 | 15 | 11 | 13 | 69 | 361 | 1150 x 642 x 1837 |
| 270L Tank Mounted + Dryer 1480 | 270 | 1480 | 52 | 20 | 15 | 13 | 69 | 386 | 1150 x 642 x 1837 |
| 500L Tank Mounted + Dryer 820 | 500 | 820 | 29 | 7,5 | 5,5 | 8 | 66 | 421 | 1935 x 642 x 1839 |
| 500L Tank Mounted + Dryer 1153 | 500 | 1153 | 41 | 10 | 7,5 | 8 | 66 | 426 | 1935 x 642 x 1839 |
| 500L Tank Mounted + Dryer 1665 | 500 | 1665 | 59 | 15 | 11 | 8 | 69 | 446 | 1935 x 642 x 1839 |
| 500L Tank Mounted + Dryer 1985 | 500 | 1985 | 70 | 20 | 15 | 8 | 69 | 471 | 1935 x 642 x 1839 |
| 500L Tank Mounted + Dryer 670 | 500 | 670 | 24 | 7,5 | 5,5 | 10 | 66 | 421 | 1935 x 642 x 1839 |
| 500L Tank Mounted + Dryer 1000 | 500 | 1000 | 35 | 10 | 7,5 | 10 | 66 | 426 | 1935 x 642 x 1839 |
| 500L Tank Mounted + Dryer 1435 | 500 | 1435 | 51 | 15 | 11 | 10 | 69 | 446 | 1935 x 642 x 1839 |
| 500L Tank Mounted + Dryer 1771 | 500 | 1771 | 63 | 20 | 15 | 10 | 69 | 471 | 1935 x 642 x 1839 |
| 500L Tank Mounted + Dryer 520 | 500 | 520 | 18 | 7,5 | 5,5 | 13 | 66 | 421 | 1935 x 642 x 1839 |
| 500L Tank Mounted + Dryer 810 | 500 | 810 | 29 | 10 | 7,5 | 13 | 66 | 426 | 1935 x 642 x 1839 |
| 500L Tank Mounted + Dryer 1210 | 500 | 1210 | 43 | 15 | 11 | 13 | 69 | 446 | 1935 x 642 x 1839 |
| 500L Tank Mounted + Dryer 1480 | 500 | 1480 | 52 | 20 | 15 | 13 | 69 | 471 | 1935 x 642 x 1839 |
| Base Mounted 1726 | 0 | 1726 | 61 | 15 | 11 | 8 | 70 | 296 | 1095 x 642 x 1220 |
| Base Mounted 2218 | 0 | 2218 | 78 | 20 | 15 | 8 | 70 | 321 | 1095 x 642 x 1220 |
| Base Mounted 2771 | 0 | 2771 | 98 | 25 | 18,5 | 8 | 72 | 375 | 1204 x 805 x 1220 |
| Base Mounted 3511 | 0 | 3511 | 124 | 30 | 22 | 8 | 74 | 391 | 1204 x 805 x 1220 |
| Base Mounted 3893 | 0 | 3893 | 137 | 40 | 30 | 8 | 77 | 419 | 1204 x 805 x 1220 |
| Base Mounted 1492 | 0 | 1492 | 53 | 15 | 11 | 10 | 70 | 296 | 1095 x 642 x 1220 |
| Base Mounted 2020 | 0 | 2020 | 71 | 20 | 15 | 10 | 70 | 321 | 1095 x 642 x 1220 |
| Base Mounted 2501 | 0 | 2501 | 88 | 25 | 18,5 | 10 | 72 | 375 | 1204 x 805 x 1220 |
| Base Mounted 3011 | 0 | 3011 | 106 | 30 | 22 | 10 | 74 | 391 | 1204 x 805 x 1220 |
| Base Mounted 3502 | 0 | 3502 | 124 | 40 | 30 | 10 | 77 | 419 | 1204 x 805 x 1220 |
| Base Mounted 1121 | 0 | 1121 | 40 | 15 | 11 | 13 | 70 | 296 | 1095 x 642 x 1220 |
| Base Mounted 1538 | 0 | 1538 | 54 | 20 | 15 | 13 | 70 | 321 | 1095 x 642 x 1220 |
| Base Mounted 1959 | 0 | 1959 | 69 | 25 | 18,5 | 13 | 72 | 375 | 1204 x 805 x 1220 |
| Base Mounted 2612 | 0 | 2612 | 92 | 30 | 22 | 13 | 74 | 391 | 1204 x 805 x 1220 |
| Base Mounted 2942 | 0 | 2942 | 104 | 40 | 30 | 13 | 77 | 419 | 1204 x 805 x 1220 |
| Base Mounted + Dryer 1726 | 0 | 1726 | 61 | 15 | 11 | 8 | 70 | 326 | 1095 x 642 x 1220 |
| Base Mounted + Dryer 2218 | 0 | 2218 | 78 | 20 | 15 | 8 | 70 | 351 | 1095 x 642 x 1220 |
| Base Mounted + Dryer 2771 | 0 | 2771 | 98 | 25 | 18,5 | 8 | 72 | 448 | 1659 x 805 x 1220 |
| Base Mounted + Dryer 3511 | 0 | 3511 | 124 | 30 | 22 | 8 | 74 | 464 | 1659 x 805 x 1220 |
| Base Mounted + Dryer 3893 | 0 | 3893 | 137 | 40 | 30 | 8 | 77 | 492 | 1659 x 805 x 1220 |
| Base Mounted + Dryer 1492 | 0 | 1492 | 53 | 15 | 11 | 10 | 70 | 326 | 1095 x 642 x 1220 |
| Base Mounted + Dryer 2020 | 0 | 2020 | 71 | 20 | 15 | 10 | 70 | 351 | 1095 x 642 x 1220 |
| Base Mounted + Dryer 2501 | 0 | 2501 | 88 | 25 | 18,5 | 10 | 72 | 448 | 1659 x 805 x 1220 |
| Base Mounted + Dryer 3011 | 0 | 3011 | 106 | 30 | 22 | 10 | 74 | 464 | 1659 x 805 x 1220 |
| Base Mounted + Dryer 3502 | 0 | 3502 | 124 | 40 | 30 | 10 | 77 | 492 | 1659 x 805 x 1220 |
| Base Mounted + Dryer 1121 | 0 | 1121 | 40 | 15 | 11 | 13 | 70 | 326 | 1095 x 642 x 1220 |
| Base Mounted + Dryer 1538 | 0 | 1538 | 54 | 20 | 15 | 13 | 70 | 351 | 1095 x 642 x 1220 |
| Base Mounted + Dryer 1959 | 0 | 1959 | 69 | 25 | 18,5 | 13 | 72 | 448 | 1659 x 805 x 1220 |
| Base Mounted + Dryer 2612 | 0 | 2612 | 92 | 30 | 22 | 13 | 74 | 464 | 1659 x 805 x 1220 |
| Base Mounted + Dryer 2942 | 0 | 2942 | 104 | 40 | 30 | 13 | 77 | 492 | 1659 x 805 x 1220 |
| 500L Tank Mounted + Dryer 1726 | 500 | 1726 | 61 | 15 | 11 | 8 | 70 | 476 | 1935 x 642 x 1839 |
| 500L Tank Mounted + Dryer 2218 | 500 | 2218 | 78 | 20 | 15 | 8 | 70 | 501 | 1935 x 642 x 1839 |
| 500L Tank Mounted + Dryer 2771 | 500 | 2771 | 98 | 25 | 18,5 | 8 | 72 | 638 | 1939 x 805 x 1841 |
| 500L Tank Mounted + Dryer 3511 | 500 | 3511 | 124 | 30 | 22 | 8 | 74 | 654 | 1939 x 805 x 1841 |
| 500L Tank Mounted + Dryer 1492 | 500 | 1492 | 53 | 15 | 11 | 10 | 70 | 476 | 1935 x 642 x 1839 |
| 500L Tank Mounted + Dryer 2020 | 500 | 2020 | 71 | 20 | 15 | 10 | 70 | 501 | 1935 x 642 x 1839 |
| 500L Tank Mounted + Dryer 2501 | 500 | 2501 | 88 | 25 | 18,5 | 10 | 72 | 638 | 1939 x 805 x 1841 |
| 500L Tank Mounted + Dryer 3011 | 500 | 3011 | 106 | 30 | 22 | 10 | 74 | 654 | 1939 x 805 x 1841 |
| 500L Tank Mounted + Dryer 1121 | 500 | 1121 | 40 | 15 | 11 | 13 | 70 | 476 | 1935 x 642 x 1839 |
| 500L Tank Mounted + Dryer 1538 | 500 | 1538 | 54 | 20 | 15 | 13 | 70 | 501 | 1935 x 642 x 1839 |
| 500L Tank Mounted + Dryer 1959 | 500 | 1959 | 69 | 25 | 18,5 | 13 | 72 | 638 | 1939 x 805 x 1841 |
| 500L Tank Mounted + Dryer 2612 | 500 | 2612 | 92 | 30 | 22 | 13 | 74 | 654 | 1939 x 805 x 1841 |
